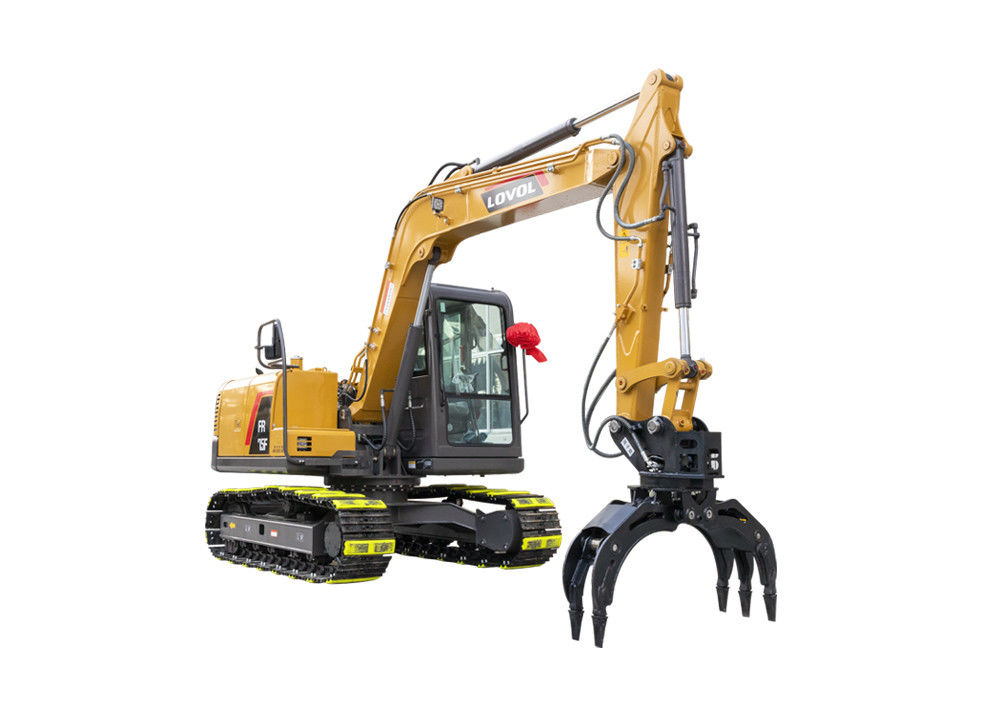

Hekuang 3+2 steel grabbing machine
| Total length | mm | A | 6175 |
| Grounding length (transportation) | mm | B | 3650 |
| Total height (to the top of the boom) | mm | C | 2540 |
| Total width | mm | D | 2275 |
| Total height (to the top of the cab) | mm | E | 2620 |
| Ground clearance of counterweight | mm | F | 795 |
| Track Gauge | mm | G | 380 |
| Undercarriage width | mm | H | 1830 |
| Track plate width | mm | I | 2130 |
| Distance from slewing center to rear end | mm | J | 2750 |
| Grabber height | mm | K | 1750 |
| Maximum working height | mm | L | 2200 |
| Maximum unloading height | mm | M | 450 |
| Maximum excavation depth | mm | N | 20 |
| Maximum vertical excavation depth | mm | O | 1760 |
| Maximum excavation radius | mm | P | 2200 |
| Maximum excavation radius of the parking surface | mm | Q | 1830 |
| Minimum turning radius | mm | 1 | 7175 |
| Grabber height | mm | 2 | 5140 |
Description:
The steel grabbing machine (lotus grabbing&plum grabbing&mechanical claw) refers to a machine that grabs steel materials, evolved from hydraulic excavators.
Appliion:
Designed for the gripping and loading of various loose or block materials such as waste metal, industrial waste, crushed stone, construction waste, household waste, etc.
Service:
Our products are sold all over the world, you can rest assured.
