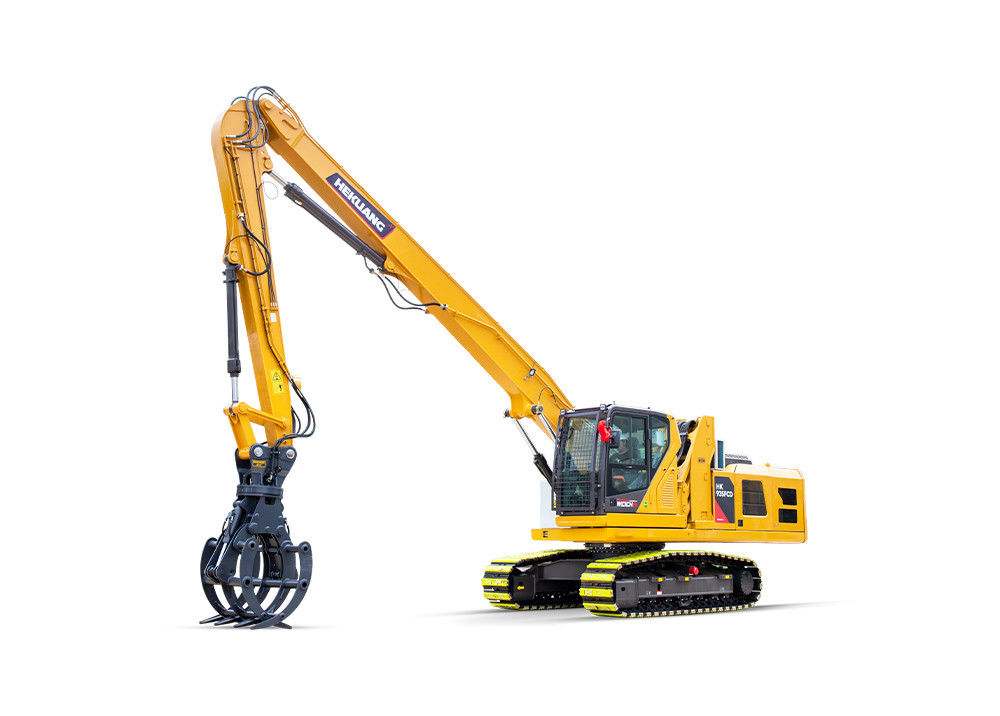

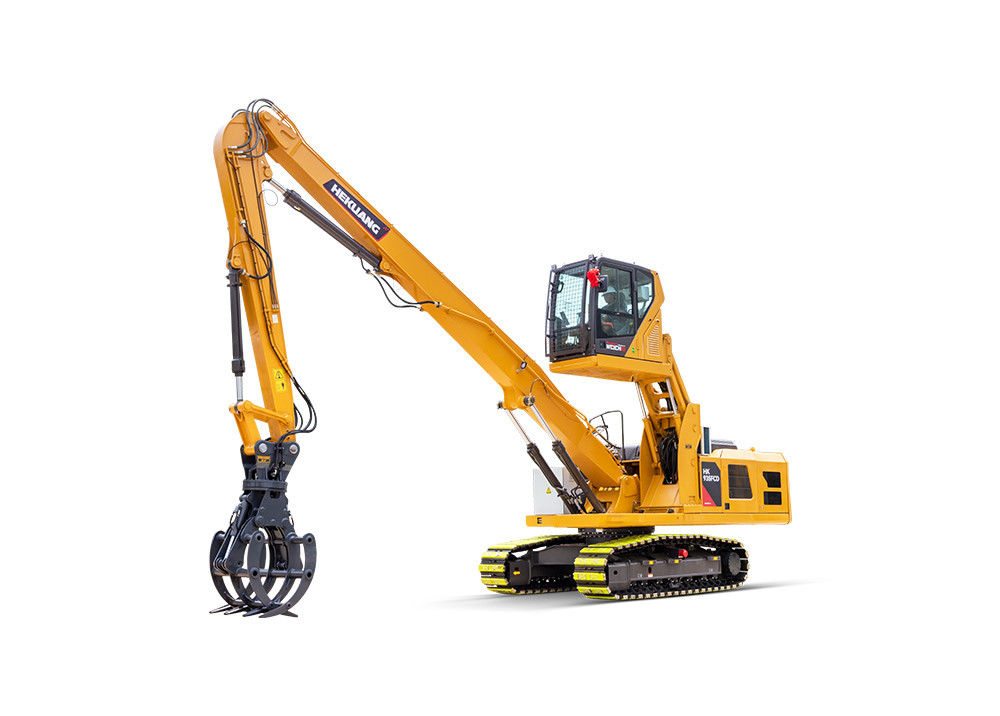

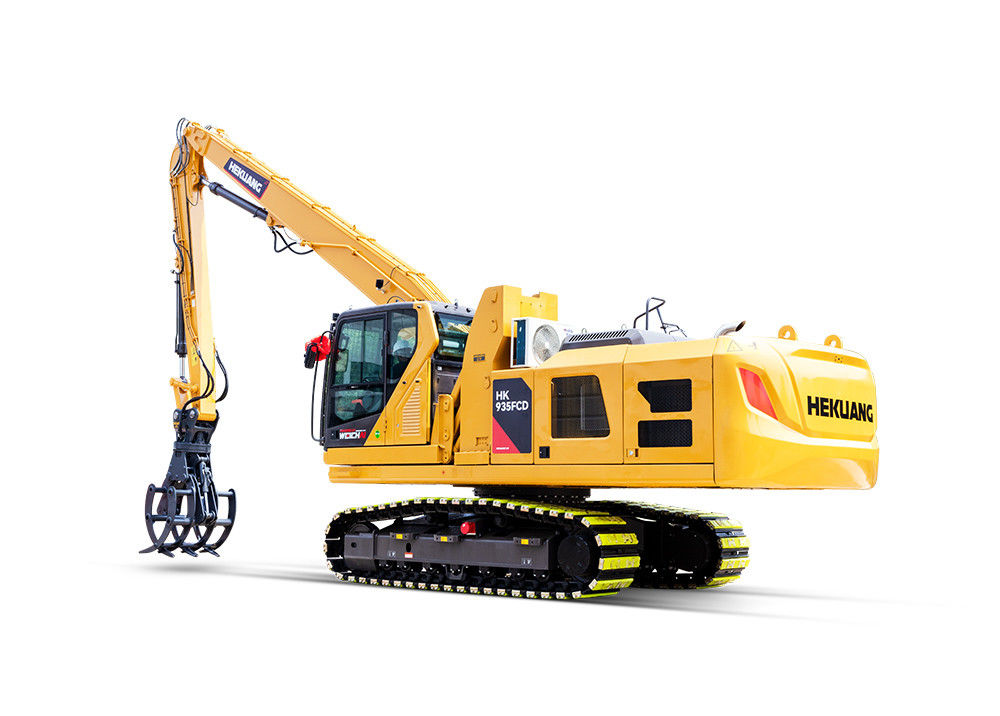

35FCD 28000kg Excavator Grabber Oil Electric Hybrid Grabber Digger for Scrap steel wharf
● Engine emmissions conform to the latest environmental regulations.
● It is equipped with the world famous brand hydraulic components.
● It has wide operating range, powerful grabbing force and high working efficiency.
● It is widely used in agriculture and forestry, such as stacking, loading and unloading operations of hay bales and grain bags in agriculture, and stacking, loading and unloading operations of round logs or timber in forestry.
| Total width | mm | A | 2800 |
| Total height ( to top of cab ) | mm | B | 3046 |
| Counterweight Ground Clearance | mm | C | 1106 |
| Tail Swing Radius | mm | D | 2980 |
| Track Ground Length | mm | E | 3275 |
| Track length | mm | F | 4030 |
| Track Gauge | mm | G | 2200 |
| Undercarriage width | mm | H | 2800 |
| Track plate width | mm | I | 600 |
| Distance from slewing center to rear end | mm | J | 2970 |
| Grabber height | mm | K | 2447 |
| Maximum working height | mm | L | 14120 |
| Maximum unloading height | mm | M | 11673 |
| Bucket bar length | mm | N | 4500 |
| Boom length | mm | O | 8500 |
| Maximum working radius | mm | P | 12700 |
| Maximum gripping depth | mm | Q | 9780 |
| Maximum depth of small arm | mm | R | 6733 |
| Grabber height | mm | S | 2447 |
| Engine brand | 国四 | 1 | WP4.6N |
| Main pump flow rate | L/min | 2 | 220*2 |
*All product photos in this alogue are based on the actual product.
Engine : HEKUANG customized WP4.6N low-speed and high-torque engine, leading the industry in thermal efficiency. The operating efficiency of the whole machine is increased by 10%, and the fuel efficiency is increased by 15%.
Main pump: Displacement increased by 8% compared with E generation and competitors, electronically controlled main pump improves system responsiveness and is more efficient.
Main valve: Exclusive custom-tuned main valve, internal flow channel optimization, pressure loss reduced by 10%, better response.
Newly developed Laval intelligent operating system can realize power system management, intelligent interaction, automatic identifiion of working conditions, auxiliary operation, personalized customization and other functions.
Operating system: The newly developed HEKUANG intelligent operating system can realize power system management, intelligent interaction, automatic identifiion of working conditions, auxiliary operation, personalized customization and other functions.
1. Intelligent vehicle control : The driver can remotely control the excavator by connecting the cell phone to the car's Bluetooth to turn on/off the power, start/off the engine, turn on/off the air conditioner, and turn on/off the lights.
2. Intelligent Multimedia : Driver can answer phone calls and play music through the monitor after connecting his cell phone to the vehicle's Bluetooth.
3. Intelligent Attachment : Selecting different attachment modes through the screen can quickly realize the optimal matching of attachments.
Cab: Adopting new structure, extending up to meet the requirements of 50 tons ROPS regulations, panoramic sunroof, breaking through the concept of conventional construction machinery.
