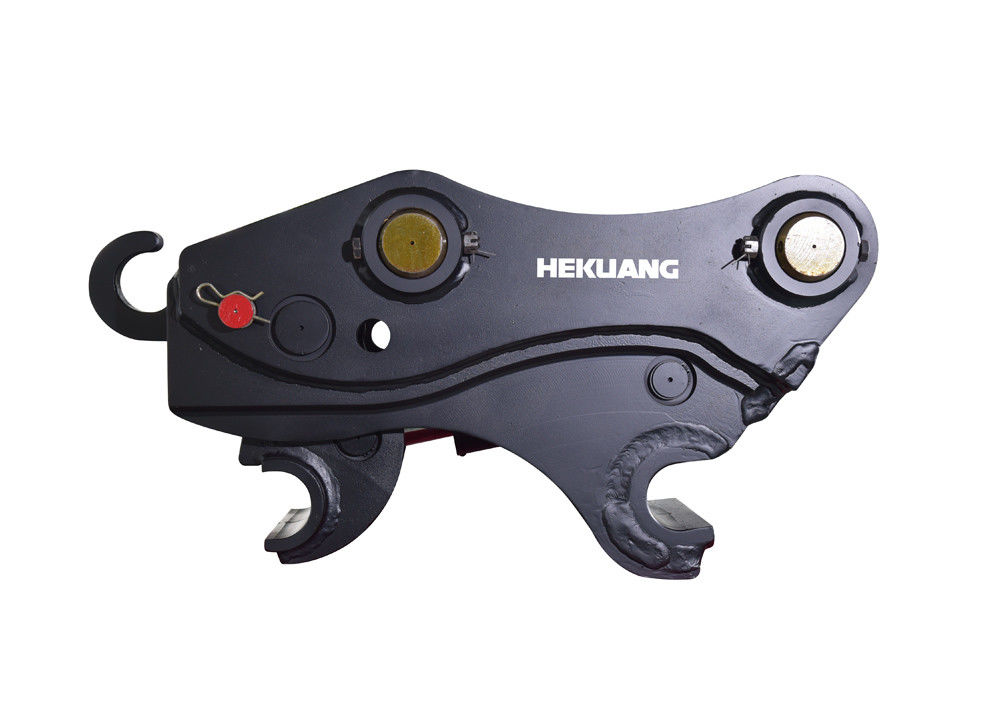

25kg Excavator Attachments Excavator hydraulic quick connector excavator connector
Quick connector, also called quick change, quick connection, quick connector.
Excavators equipped with quick-change can quickly install and switch various front-end attachments (bucket, ripper, wood grabber, breaker, hydraulic shear, etc.). It is an essential device to achieve multiple functions in one machine, saving time and reducing labor. Strength and improve the efficiency of the excavator.
| Item/Model | unit | YK30 | YK45 | YK50 | YK60 | YK80 | YK90 | YK100 | |||||
| serial number | RM | RF | RL | RJ | RH | RE | RN | RP | |||||
| weight | kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 | |||||
| length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1473 | |||||
| high | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 | |||||
| width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 | |||||
| Shaft center distance | mm | 90 | 260 | 312 | 374.9 | 458 | 446.3 | 446 | 514 | 514 | 537 | ||
| Forearm opening/I-frame opening | mm | 96 | 155 | 198/202 | 262 | 326.5 | 360/346 | 472/442 | 371 | ||||
| Cylinder telescopic distance | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 | |||||
| The distance between the upper and lower axes | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 | |||||
| Shaft diameter (small arm/H frame) | mm | 30 | 45 | 50 | 60 | 80 | 90 | 90 | 90/100 | 100 | 100/110 | ||
| work pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | |||||
| Work flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | |||||
Note: This product is constantly improved with the progress of technology, the above listed parameters and structural characteristics and physical differences in the physical shall prevail.
