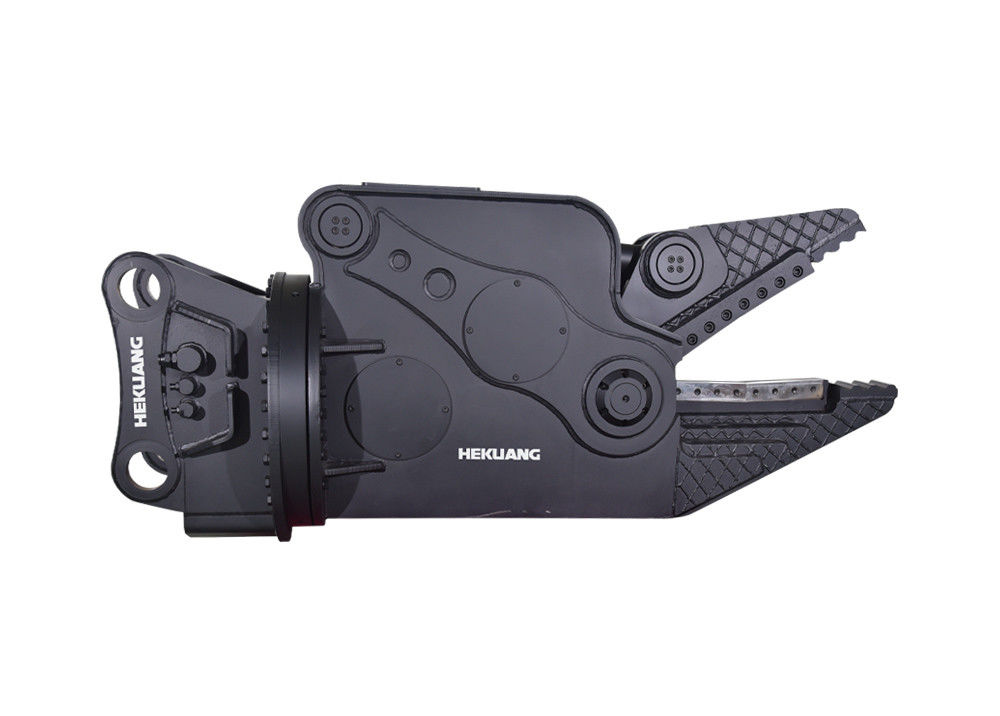

It is mainly used for the dismantling operations of various types of scrapped vehicles and steel materials. It is mainly divided into fine type, extensive type and enhanced type according to the type of scrapped vehicle, opening size and blade length.
| Ltem/Model | unit | CSA60 | CSA80 | CSA90 | ||||
| Serial number | RJ | RH | RE | RN | RN | RN | ||
| Weight | kg | 1250 | 1600 | 2120 | ||||
| Maximum opening | mm | 670 | 840 | 960 | ||||
| Full length | mm | 2020 | 2530 | 2950 | ||||
| Full width | mm | 650 | 820 | 950 | ||||
| Blade length | mm | 170*2 | 200*2 | 220*4 | ||||
| maximum shear force | ton | 160 | 208 | 249 | ||||
| Shaft center distance | mm | 374.9 | 458 | 446.3 | 514 | |||
| Forearm open | mm | 262 | 326.5 | 360/346 | 472/442 | |||
| Shaft diameter (small arm/H frame) | mm | 60 | 80 | 90 | 90/100 | 90/100 | ||
| Set pressure | bar | 250 | 280 | 320 | ||||
| Flow | L/min | 180-190 | 200-240 | 230-260 | ||||
Note: This product is constantly improved with the progress of technology, the above listed parameters and structural characteristics and physical differences in the physical shall prevail.
