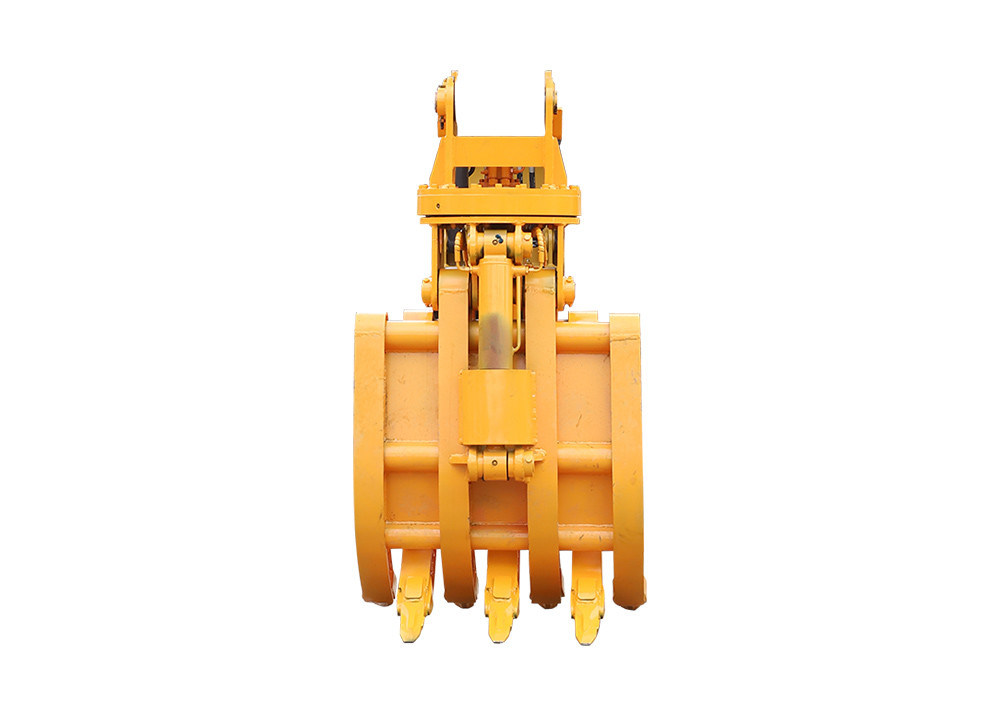

1400mm Special Excavator Attachments Large Capacity Oil Cylinder Mechanical Claw Attachment
Features
- Largest opening width, small weight and high performance in the same class
- The operator can control the rotation speed
- In order to enhance the strength, a special large-capacity oil cylinder is used
- Can rotate freely 360 degrees clockwise and counterclockwise
- The use of special rotating gears extends product life and reduces maintenance costs.
- It can carry out all clamping operations such as stone operations, wood and cane operations, waste operations, pipe operations, garden operations, masonry projects, etc.
Attachments Parameters
| Ltem/Model |
Unit |
SZ45 |
SZ50 |
SZ60 |
SZ80 |
SZ90 |
| Serial number |
|
RF |
RL |
RJ |
RH |
RE |
RN |
|
RN |
| Weights |
kg |
360 |
440 |
900 |
1850 |
2130 |
2600 |
| Opening Size |
mm |
1200 |
1400 |
1600 |
2100 |
2500 |
2800 |
| Shaft centre distance |
mm |
260 |
312 |
374.9 |
458 |
446.3 |
514 |
| Forearm opening/I-frame opening |
mm |
155 |
198/202 |
262 |
326.5 |
326.5 |
360/346 |
472/442 |
360/346 |
| Shaft diameter (small arm/H frame) |
mm |
45 |
50 |
60 |
80 |
80 |
90 |
90/100 |
90/100 |
| Set pressure |
bar |
170 |
180 |
190 |
200 |
210 |
250 |
| low |
L/min |
30-55 |
50-100 |
90-110 |
100-140 |
130-170 |
200-250 |
Note: This product is continuously improved with technological progress. Any differences between the parameters and structural characteristics listed above and the actual product shall prevail.
Widely applicable to
