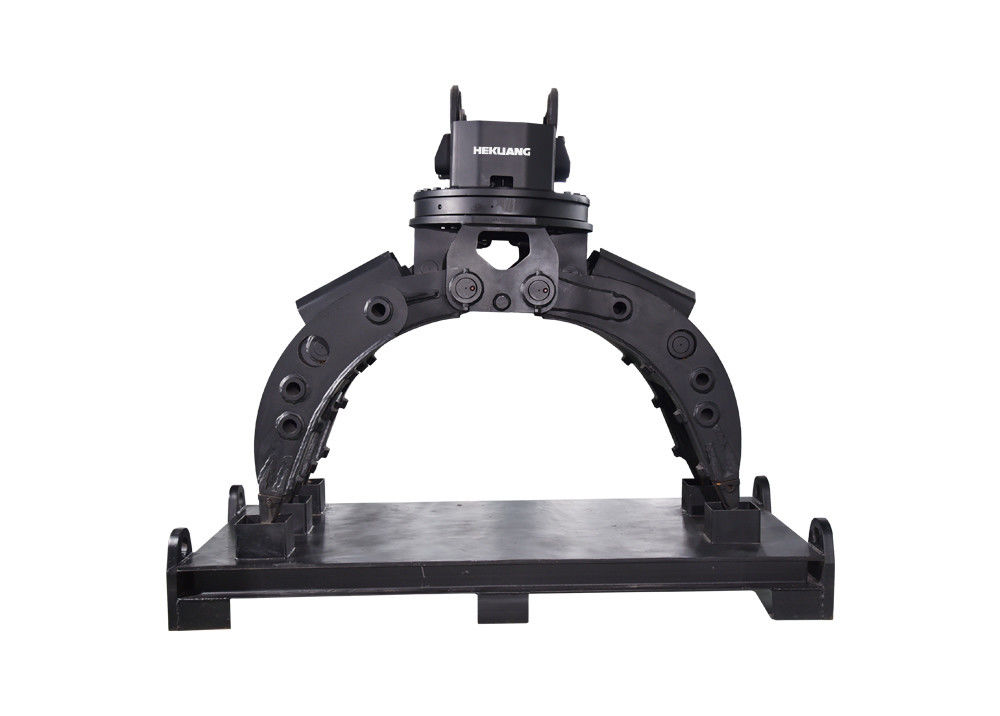

1200mm Excavator Attachments Double Cylinder Wood Grabber Tool Stone Steel
A wood grabber, as the name suggests, is a machine for grabbing wood. It is generally evolved from a hydraulic excavator. The biggest difference between a log grabber and an ordinary excavator is the difference in the front-end working device, that is, the different working purposes: the large and small arms of ordinary excavators are generally shorter, and the front end is a bucket, whose main function is to carry out excavation and loading operations; grabbing wood The large and small arms of the machine are commonly known as "grabbing arms". They are generally longer and have a different shape and structure from ordinary excavators. The front end is a wood grabber. Its main function is to load and unload wood, timber, reeds, straw and various strip materials. and handling operations.
| Item/Model | unit | SZ45 | SZ50 | SZ60 | SZ80 | SZ90 | |||
| Suitable for excavators | ton |
FR60E/E2/E2-H FR65E/E2 FR60F |
FR75E/E2 FR80E/E2 FR75F |
FR130E2-H FR150E/E2 FR170E2 FR150F |
FR200E FR210E FR220E FR215F FR220F FR245F |
FR240E-H FR260E/HD FR260F |
FR330E FR330E2-HD FR370E |
FR350F-HD FR390F-HD |
FR350E2 FR370E2 FR390E2-HD |
| Drawing number | RF | RL | RJ | RH | RE | RN | RN | ||
| weight | kg | 360 | 440 | 900 | 1850 | 2130 | 2600 | ||
| Size of the opening | mm | 1200 | 1400 | 1600 | 2100 | 2500 | 2800 | ||
| Shaft center distance | mm | 260 | 312 | 374.9 | 458 | 446.3 | 514 | ||
| Forearm opening/I-frame opening | mm | 155 | 198/202 | 262 | 326.5 | 326.5 | 360/346 | 472/442 | 360/346 |
| Shaft diameter (small arm/H frame) | mm | 45 | 50 | 60 | 80 | 80 | 90 | 90/100 | 90/100 |
| Set pressure | bar | 170 | 180 | 190 | 200 | 210 | 250 | ||
| Work flow | L/min | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | ||
1200mm Excavator Attachments
260mm Excavator Attachments
Double cylinder wood grabber tool
Our products are sold all over the world, you can rest assured.
