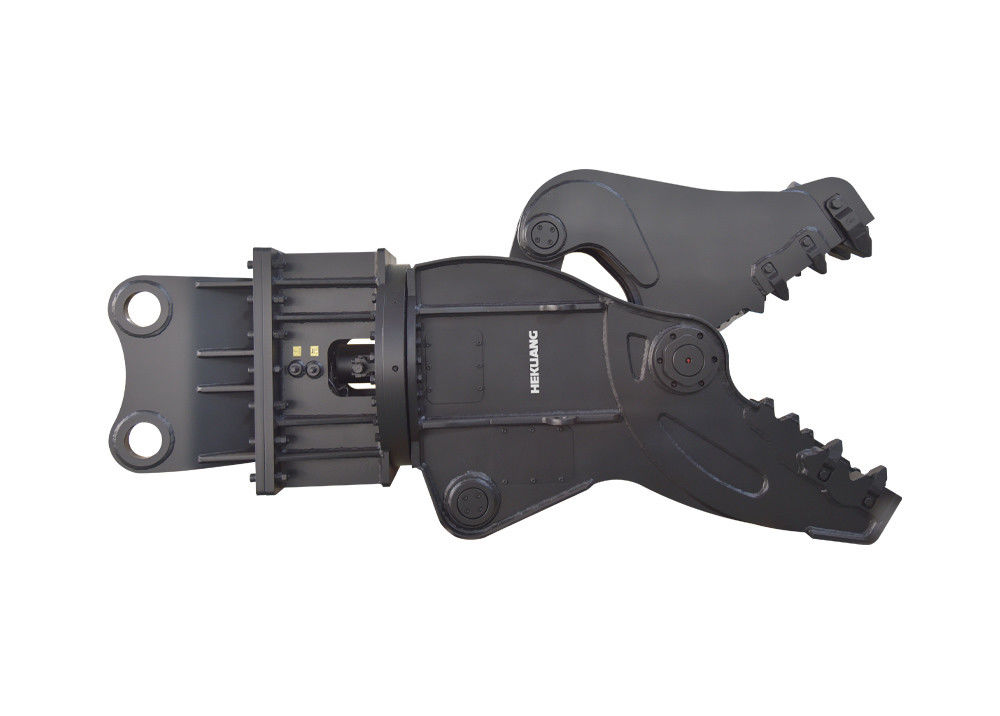

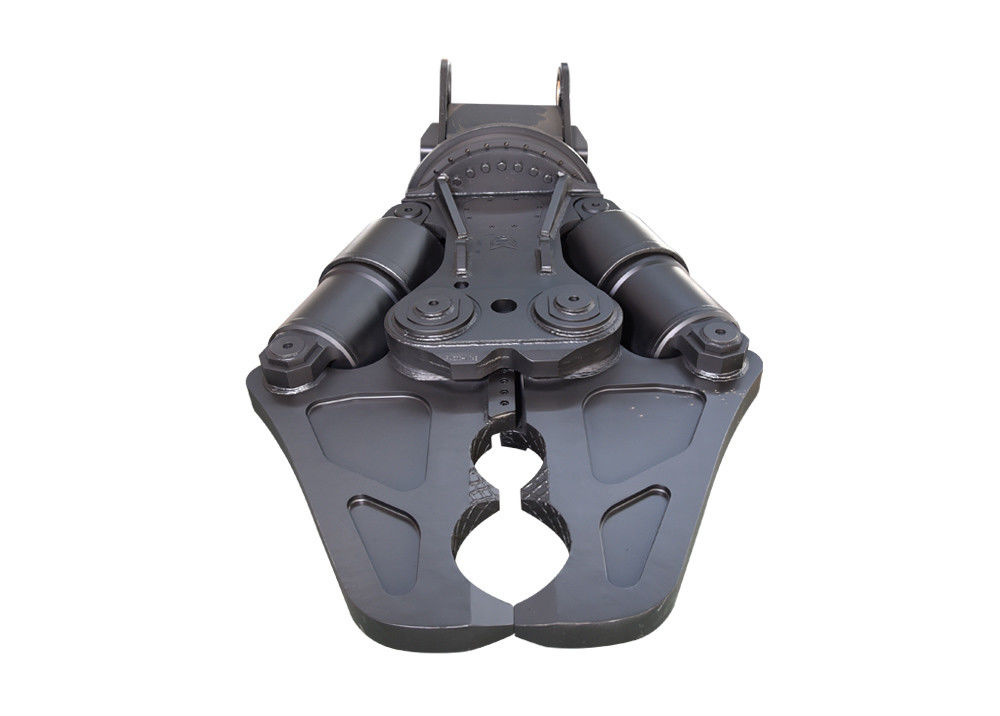

Mainly used for demolition work of reinforced concrete buildings
| Item/Model | 单位 | SHS45 | SHS50 | SHS60 | SHS80 | SHS90 | |||
| Suitable for excavators | ton |
FR60E/E2/E2-H FR65E/E2 FR60F |
FR75E/E2 FR80E/E2 FR75F |
FR130E2-H FR150E/E2 FR170E2 FR130F FR150F |
FR200E FR210E FR220E FR215F FR220F FR245F |
FR240E-H FR260E/HD |
FR330E FR330E2-HD FR370E |
FR350F-HD FR390F-HD |
FR350E2 FR370E2 FR390E2-HD |
| Drawing number | RF | RL | RJ | RH | RE | RN | RN | RN | |
| weight | kg | 720 | 1420 | 2280 | 2780 | ||||
| maximum opening | mm | 630 | 800 | 1100 | 1550 | ||||
| Notch depth | mm | 420 | 540 | 700 | 980 | ||||
| central shear force | ton | 68 | 112 | 161 | 211 | ||||
| Front end crushing force | ton | 43 | 72 | 100 | 150 | ||||
| opening period | sec | 2.1 | 2.4 | 2.5 | 2.8 | ||||
| closed cycle | sec | 3.8 | 4.1 | 4.3 | 4.5 | ||||
| Shaft center distance | mm | 260 | 312 | 374.9 | 458 | 446.3 | 514 | ||
| Forearm open | mm | 155 | 198/202 | 262 | 326.5 | 360/346 | 472/442 | 360/346 | |
| Shaft diameter (small arm/H frame) | mm | 45 | 50 | 60 | 80 | 90 | 90/100 | 90/100 | |
| Set pressure | bar | 270 | 300 | 320 | 320 | ||||
| Work flow | L/min | 80-150 | 180-250 | 230-280 | 260-350 | ||||
